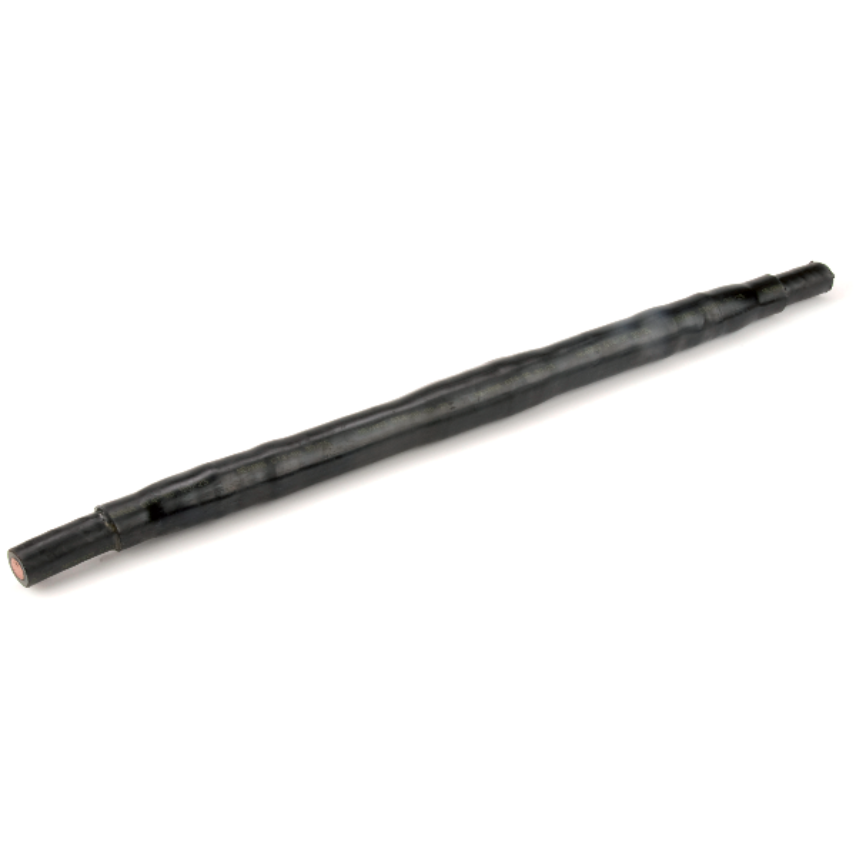

Heatshrinkable joint 52GTS1

Application

52GTS1 straight joint are designed for unarmored plastic or HEPR insulated cables with Cu wire screen.

Technical characteristics

NGS semi-conductive tape is used to fill the gaps, cover the connector.
The screen cut on both sides are covered with stress grading mastic plates as well as the connector area.
The joint body consists of a stress control tubing, an insulating, heavy wall tubing and finally heavy dual wall screened insulating tube.
The outer sheath is restored with GT4 adhesive lined heavy wall tubing.
