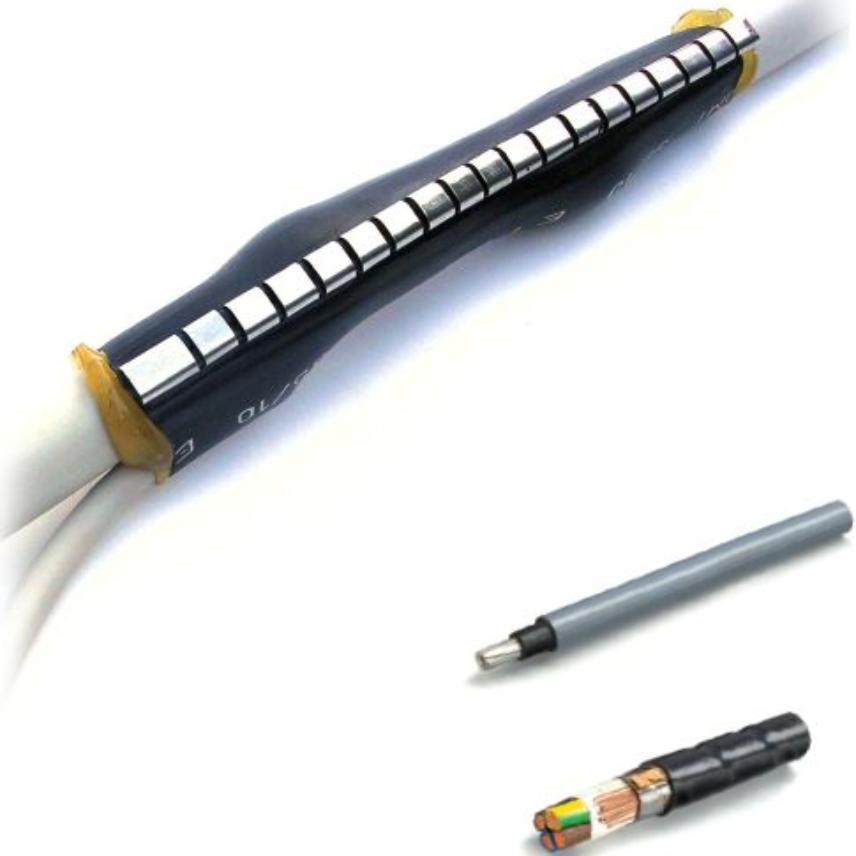

Heatshrinkable branch joint 1GDT
Heatshrinkable branch joint 1GDT
Heat-Shrinkable Branch Joints
For LV Cables
Max voltage: 1 kV
Descrizione
Descrizione
Norme
-
ProductCENELEC HD 623; EN 50393
Application
The 1GDT heat-shrinkable low voltage branch joint kits are designed to accommodate 4 core plastic cables, with or without armor.
Kit contents
- Inner core/connector protection tubes w. adhesive
- Outer heat-shrinkable wraparound sleeve with or without reinforcement
- For armored cable: armor continuity kit supplied
1GDT Product information
| Product code | Conductor sizes (mm2) | |
| Straight jointing | Branch jointing | |
| 1GDT2 | 4x6÷4x10 | 2x2,5-4x2,5 |
| 1GDT3 | 4x6÷4x25 | 2x2,5-4x2,5 |
| 1GDT4 | 3x35+25÷3x95+50 | 2x2,5-4x25 |
