Heat-shrinkable anti-tracking cable breakout 36TTE
Heat-shrinkable anti-tracking cable breakout 36TTE
HEAT-SHRINKABLE ANTI-TRACKING CABLE BREAKOUT
Up to Umax 52kV
36TTE13
Nexans ref. 36TTE13

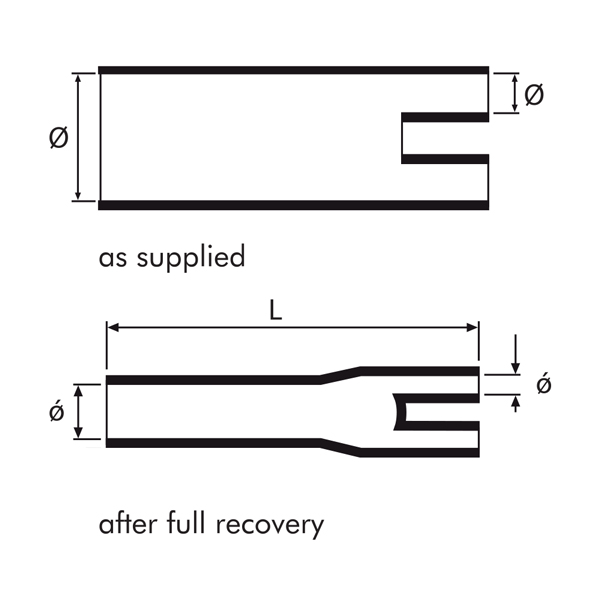

- Diameter before shrinking: 55 mm
- Diameter after shrinking: 23 mm
- Internal diameter of finger before recovery: 23 mm
- Internal diameter of finger after free recovery: 8 mm
- Length: 135 mm
36TTE23
Nexans ref. 36TTE23
- Diameter before shrinking: 75 mm
- Diameter after shrinking: 31 mm
- Internal diameter of finger before recovery: 32 mm
- Internal diameter of finger after free recovery: 14 mm
- Length: 170 mm
36TTE33
Nexans ref. 36TTE33
- Diameter before shrinking: 110 mm
- Diameter after shrinking: 46 mm
- Internal diameter of finger before recovery: 52 mm
- Internal diameter of finger after free recovery: 22 mm
- Length: 170 mm
36TTE53
Nexans ref. 36TTE53
- Diameter before shrinking: 135 mm
- Diameter after shrinking: 56 mm
- Internal diameter of finger before recovery: 64 mm
- Internal diameter of finger after free recovery: 28 mm
- Length: 230 mm
Description
Description
Application
36TTE injection molded three finger anti-tracking breakout.
The finger and breakout body are covered with a red anti-tracking mastic, providing an complete environmental seal.
To be used on mv terminations both in and outdoor.
UV resistant.
Technical characteristics
| Material | Crosslinked polyolefin | |
| Colour | Red | |
| Continuous operating temp. | -40°C to +135°C | |
| Minimum shrink temp. | >125 °C | |
| Density | 1,2 g/cm3 ± 10% | ASTM D-1505 / ISO R-1183 |
| Tensile strength | >6 N/mm2 | ASTM D-412 / ISO 37 |
| Ultimate elongation | >200% | ASTM D-412/ ISO 37 |
| Dielectric constant | ≤5 | IEC 250 |
| Volume resistivity | > 1x1012Ohm.cm | IEC 93 |
| Dielectric strength | > 10 kv / mm | IEC 243 |
| Tracking resistance | V applied: 3,25 kv | ASTM D-23-03 |
36TTE Other options
Characteristics
Characteristics
Electrical characteristics
Electrical characteristics
Maximum operating voltage
52 kV
