Heat-shrinkable low voltage insulating breakout 1TTI
Heat-shrinkable low voltage insulating breakout 1TTI

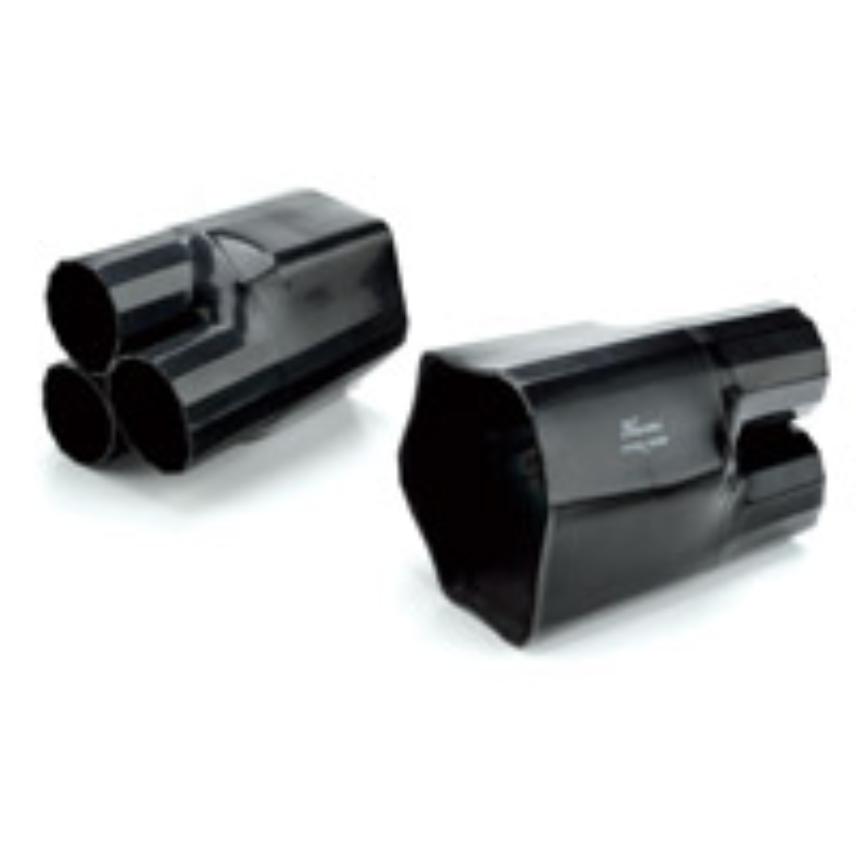

HEAT-SHRINKABLE LOW VOLTAGE INSULATING BREAKOUT
Up to Umax 1,2kV
1TTI02
Nexans ref. 1TTI02
- Diameter before shrinking: 20 mm
- Diameter after shrinking: 8 mm
- Internal diameter of finger before recovery: 10 mm
- Internal diameter of finger after free recovery: 4 mm
- Length: 60 mm
1TTI12
Nexans ref. 1TTI12
- Diameter before shrinking: 28 mm
- Diameter after shrinking: 9 mm
- Internal diameter of finger before recovery: 12 mm
- Internal diameter of finger after free recovery: 4 mm
- Length: 70 mm
1TTI04
Nexans ref. 1TTI04
- Diameter before shrinking: 28 mm
- Diameter after shrinking: 9 mm
- Internal diameter of finger before recovery: 8 mm
- Internal diameter of finger after free recovery: 4 mm
- Length: 70 mm
1TTI13
Nexans ref. 1TTI13
- Diameter before shrinking: 35 mm
- Diameter after shrinking: 13 mm
- Internal diameter of finger before recovery: 13 mm
- Internal diameter of finger after free recovery: 4 mm
- Length: 85 mm
1TTI14
Nexans ref.
- Diameter before shrinking: 38 mm
- Diameter after shrinking: 14 mm
- Internal diameter of finger before recovery: 12 mm
- Internal diameter of finger after free recovery: 4 mm
- Length: 85 mm
1TTI23
Nexans ref.
- Diameter before shrinking: 60 mm
- Diameter after shrinking: 22 mm
- Internal diameter of finger before recovery: 24 mm
- Internal diameter of finger after free recovery: 8 mm
- Length: 140 mm
1TTI24
Nexans ref.
- Diameter before shrinking: 55 mm
- Diameter after shrinking: 20 mm
- Internal diameter of finger before recovery: 21 mm
- Internal diameter of finger after free recovery: 7 mm
- Length: 140 mm
1TTI33
Nexans ref.
- Diameter before shrinking: 80 mm
- Diameter after shrinking: 33 mm
- Internal diameter of finger before recovery: 36 mm
- Internal diameter of finger after free recovery: 16 mm
- Length: 170 mm
1TTI43
Nexans ref.
- Diameter before shrinking: 110 mm
- Diameter after shrinking: 47 mm
- Internal diameter of finger before recovery: 38 mm
- Internal diameter of finger after free recovery: 20 mm
- Length: 170 mm
1TTI34
Nexans ref.
- Diameter before shrinking: 72 mm
- Diameter after shrinking: 22 mm
- Internal diameter of finger before recovery: 25 mm
- Internal diameter of finger after free recovery: 9 mm
- Length: 170 mm
1TTI44
Nexans ref. 1TTI44
- Diameter before shrinking: 90 mm
- Diameter after shrinking: 35 mm
- Internal diameter of finger before recovery: 34 mm
- Internal diameter of finger after free recovery: 14 mm
- Length: 170 mm
1TTI53
Nexans ref. 1TTI53
- Diameter before shrinking: 135 mm
- Diameter after shrinking: 55 mm
- Internal diameter of finger before recovery: 65 mm
- Internal diameter of finger after free recovery: 27 mm
- Length: 200 mm
1TTI54
Nexans ref. 1TTI54
- Diameter before shrinking: 125 mm
- Diameter after shrinking: 50 mm
- Internal diameter of finger before recovery: 50 mm
- Internal diameter of finger after free recovery: 20 mm
- Length: 200 mm
1TTI63
Nexans ref. 1TTI63
- Diameter before shrinking: 155 mm
- Diameter after shrinking: 55 mm
- Internal diameter of finger before recovery: 65 mm
- Internal diameter of finger after free recovery: 27 mm
- Length: 210 mm
Description
Description
Application

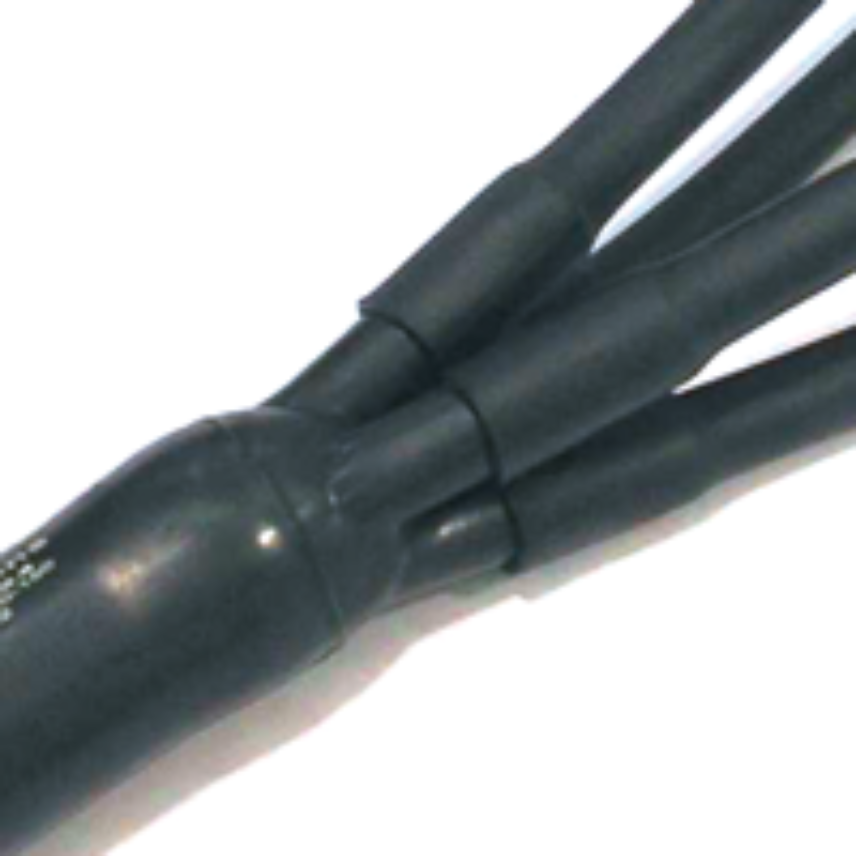

1TTI injection molded LV insulating breakouts.
Available from 2 finger up to 4 fingers.
The fingers and part of the breakout body are covered with adhesive.
Provides an excellent environmental seal for LV terminations.
the complete rage of the breakouts are UV resistant.
Technical characteristics
| Material | Crosslinked polyolefin | |
| Colour | Black | |
| Continuous operating temp. | -40°C to +135°C | |
| Minimum shrink temp. | 125 °C | |
| Density | 1 g/cm3 ± 10% | ASTM D-1505 / ISO R-1183 |
| Tensile strength | >8 n/mm2 | ASTM D-412 / ISO 37 |
| Ultimate elongation | 300% | ASTM D-412 / ISO 37 |
| Dielectric constant | ≤5 | IEC 250 |
| Volume resistivity | >1x1013Ohm.cm | IEC 93 |
| Dielectric strength | >10 kV/mm | IEC 243 |
