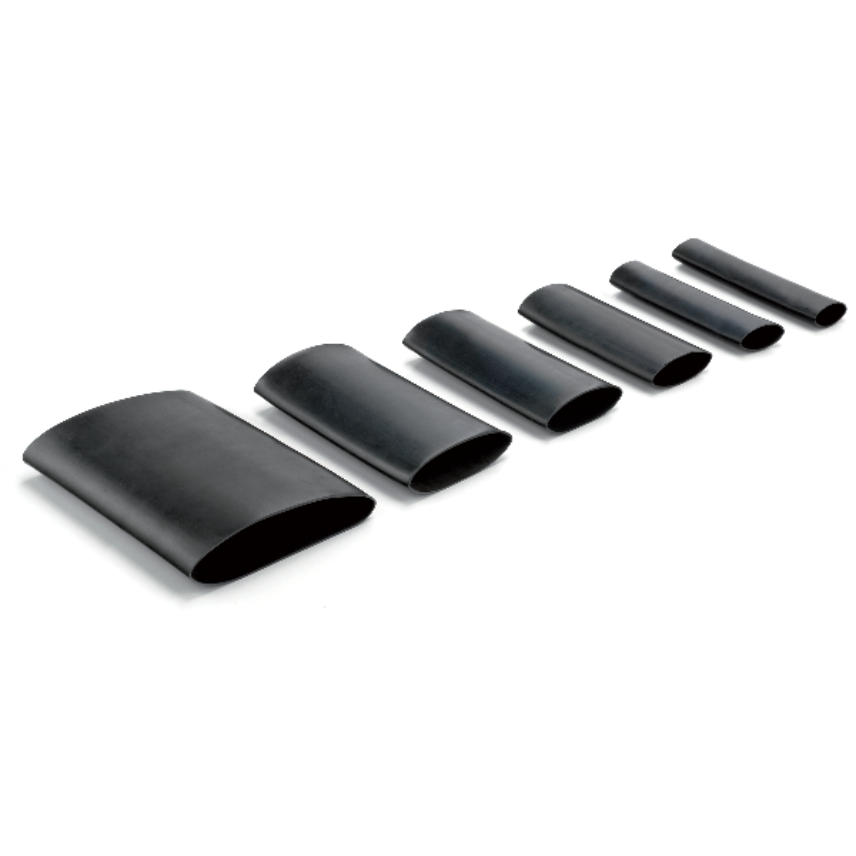

Heat-Shrinkable Medium Wall Insulating Tube with Adhesive
Heat-Shrinkable Medium Wall Insulating Tube with Adhesive
HEAT-SHRINKABLE MEDIUM WALL INSULATING TUBE WITH ADHESIVE
Read moreGT3-120
Nexans ref. GT3-120
- Diameter before shrinking: 127 mm
- Diameter after shrinking: 34 mm
- Wall thickness: 3.1 mm
- Mat length: 1.5 m
GT3-140
Nexans ref. GT3-140
- Diameter before shrinking: 149.5 mm
- Diameter after shrinking: 42 mm
- Wall thickness: 3.5 mm
- Mat length: 1.5 m
GT3-160
Nexans ref. GT3-160
- Diameter before shrinking: 169.5 mm
- Diameter after shrinking: 50 mm
- Wall thickness: 3.5 mm
- Mat length: 1.5 m
GT3-180
Nexans ref. GT3-180
- Diameter before shrinking: 191.5 mm
- Diameter after shrinking: 60 mm
- Wall thickness: 3.5 mm
- Mat length: 1.5 m
GT3-30
Nexans ref. GT3-30
- Diameter before shrinking: 34 mm
- Diameter after shrinking: 100 mm
- Wall thickness: 2.5 mm
- Mat length: 15 m
GT3-40
Nexans ref. GT3-40
- Diameter before shrinking: 44 mm
- Diameter after shrinking: 12 mm
- Wall thickness: 2.5 mm
- Mat length: 1.5 m
GT3-50
Nexans ref. GT3-50
- Diameter before shrinking: 55.5 mm
- Diameter after shrinking: 16 mm
- Wall thickness: 2.5 mm
- Mat length: 1.5 m
GT3-70
Nexans ref. GT3-70
- Diameter before shrinking: 82 mm
- Diameter after shrinking: 22 mm
- Wall thickness: 2.8 mm
- Mat length: 1.5 m
GT3-95
Nexans ref. GT3-95
- Diameter before shrinking: 93.5 mm
- Diameter after shrinking: 29 mm
- Wall thickness: 3.1 mm
- Mat length: 1.5 m
Description
Description
Application

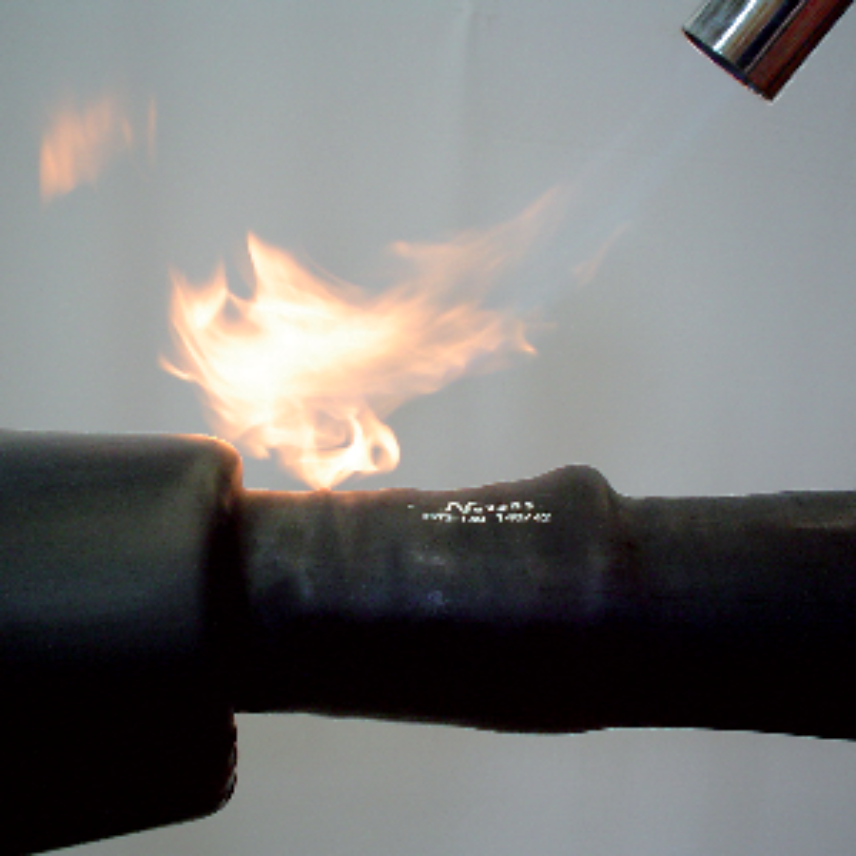

GT3 is a medium wall co extruded tubing with adhesive.
Provides excellent adhesion to a variety of cable substrates, and various metals.
Ideal for LV joints and termination as core insulation, or as cable sheath replacement in LV and MV joints.
The adhesive layer ensures a water tight seal and eliminates moisture ingress.
The tube is UV and weather resistant.
Technical characteristics
| Material | Crosslinked polyolefin | |
| Colour | Black | |
| Continuous operating temp. | -40°C to +135°C | |
| Minimum shrink temp. | 125°C | |
| Density | 1,1 g/cm3±10% | ASTM D-1505 / ISO R1183 |
| Tensile strength | 20÷25 N/mm2 | ASTM D-412 / ISO 37 |
| Ultimate elongation | 500%÷600% | ASTM D-412 / ISO 37 |
| Dielectric constant | <5 | IEC 250 |
| Volume resistivity | >1x1013Ohm.cm | IEC 93 |
| Dielectric strength | >15 kV/mm | IEC 243 |
| Water absorption | <0,2% | DIN 53495 / ISO 92 |
| Fungus and mildew resistance | gl0 | ASTM G 21 |
| Contents of carbon black | >2,5% | ASTM 2671 |
| Chemical resistance | (Treatment with 0,1NNa2SO4, H2SO4, NAoH, NaCI) |
GT3 Other options
