NGS Self-Amalgamating Semi-conductive Tape

Products

NGS19-1,5

Nexans ref. NGS19-1,5

  • Length: 1.5 mm



NGS19-5

Nexans ref. NGS19-5

  • Length: 5 mm



Description

Description

Application

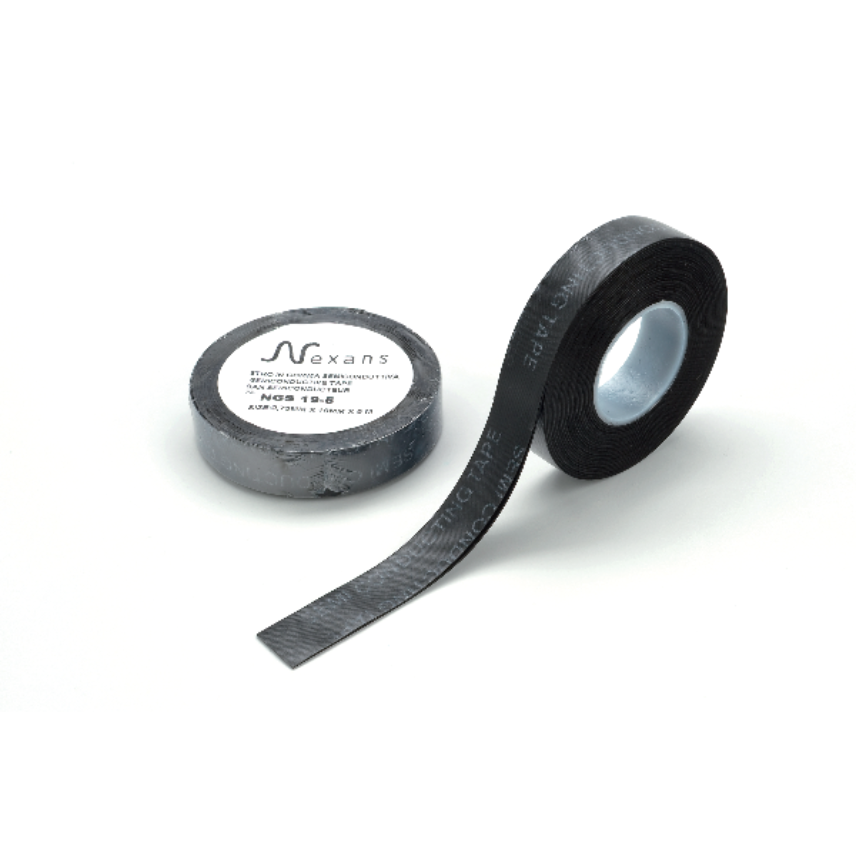

NGS is a rubber based flexible semi-conductive tape.
Used in joints to cover the ferrule on higher voltages (52kV) as well as in PILC terminations on the cable crutch area.



Technical characteristics

Colour Black
Thickness 0,75 mm
Tensile strength >1,0 MPa BS 903
Ultimate elongation >700% BS 903
Volume resistivity <1,5 Ohm.cm ASTM D 257

Characteristics

Characteristics

Dimensional characteristics

Dimensional characteristics

Width
19 mm
