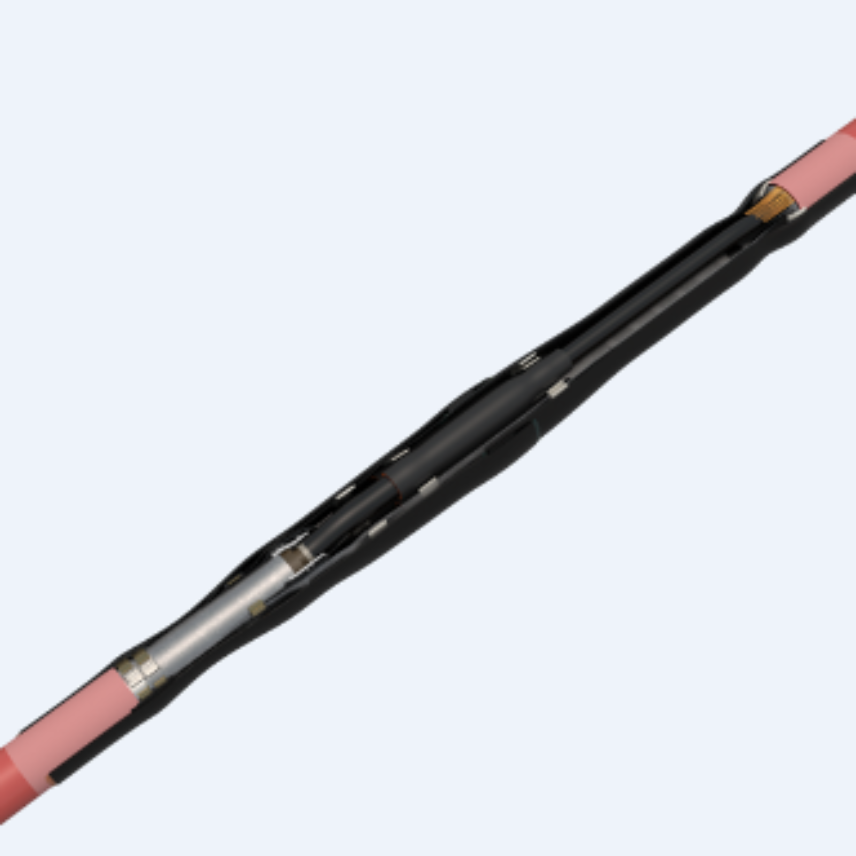

Heat shrink MV transition joint JTM3 W

Application

JTM3  heat-shrink transition joints are designed to connect three core plastic insulated cables with Cu wire screen and three paper insulated armored PILC cables.

Technical description

JTM3 is the NEW high performance, compact and easy to install joint.

A single body with all the electrical functions integrated!

The Nexans “TRIPLE GT125” is an integrated stress control field, insulating and conductive tube, which can withstand high voltage applications up to 24kV and up to 400mm2 .For 36kV and a double dual layer tube is utilized.

A double layer pad with conductive rubber inside and HK orange mastic outside ensure a Faraday cage and smooth the effect of the electrical field and of the voltage gradient in the connector area.MC types are supplied with GPH® mechanical connectors.

The outer sheath is restored with heavy/medium wall adhesive lined tubing.
