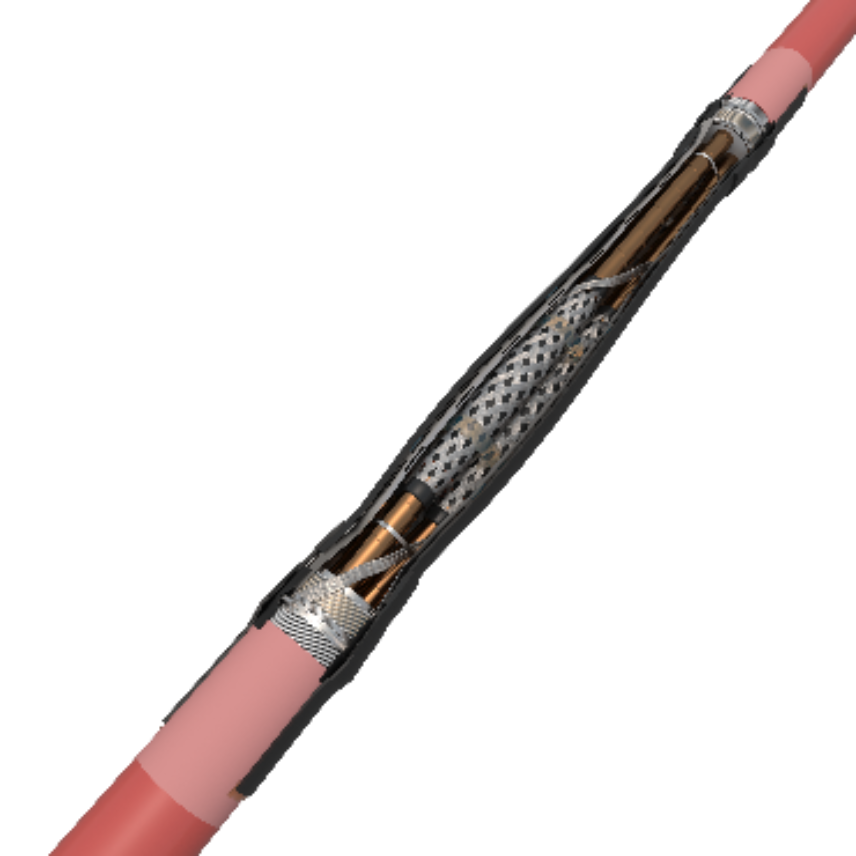

Heat shrink MV transition joint JTM3 KB

Description

Description

Application

JTM3 KB  heat-shrink transition joints are designed to connect three core plastic insulated cables with Cu wire screen armored and three paper insulated armored PILC (HSL) cables.

Technical description

JTM3 KB is the NEW high performance, compact and easy to install joint.

A single body with all the electrical functions integrated!

The Nexans “TRIPLE GT125” is an integrated stress control field, insulating and conductive tube, which can with stand high voltage applications up to 24kV and up to 400mm2 .For 36/42kV a double dual layer tube is utilized. A double layer pad with conductive rubber inside and HK orange mastic outside ensure a Faraday cage and smooth the effect of the electrical field and of the voltage gradient in the connector area.

Screen connection and armor continuity material whether SWA, STA, DSTA are included in the kit

MC types are supplied with GPH® mechanical connectors.

The outer sheath is restored with heavy/medium wall adhesive lined tubing.

New Free Section - 100885

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Technology
Heat shrink

Usage characteristics

Usage characteristics

Field of application
Outdoor
