Heat shrink outdoor termination MONOe3 W

APPLICATION

The ‘’MONOe3 W” outdoor terminations are designed for armored three core polymeric cables with Cu wire or tape screen

. TECHNICAL FEATURES

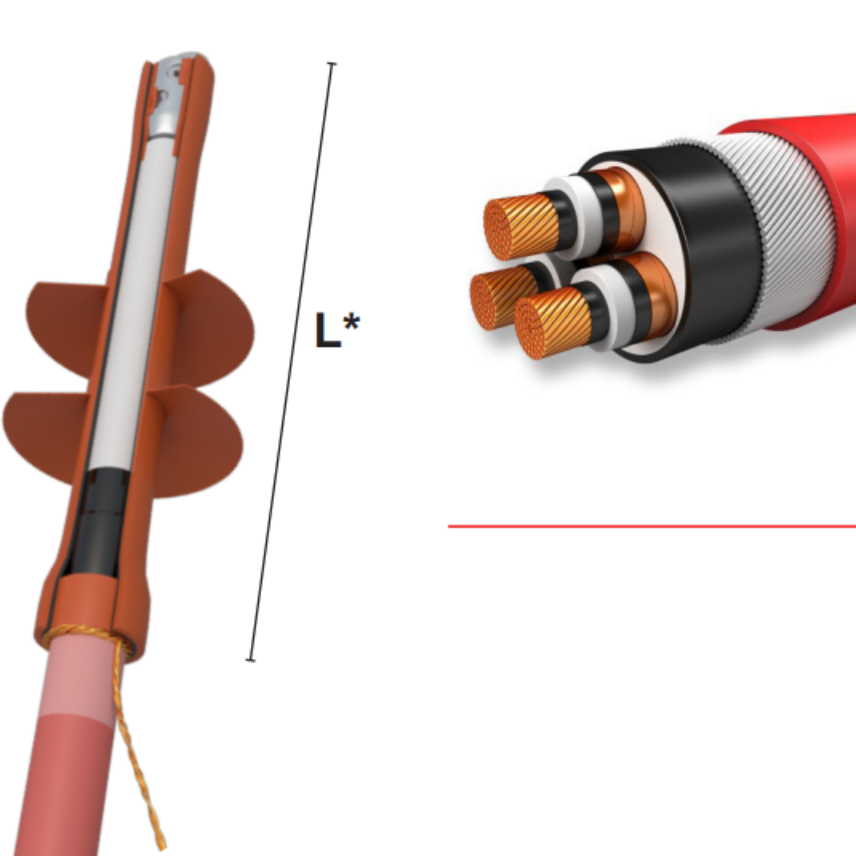

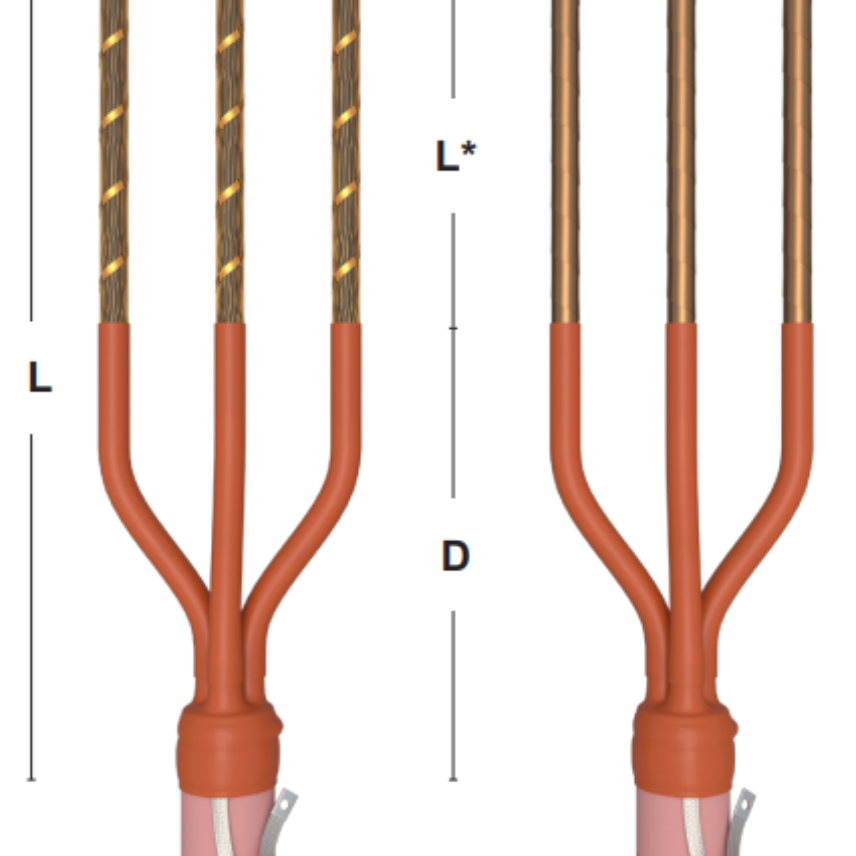

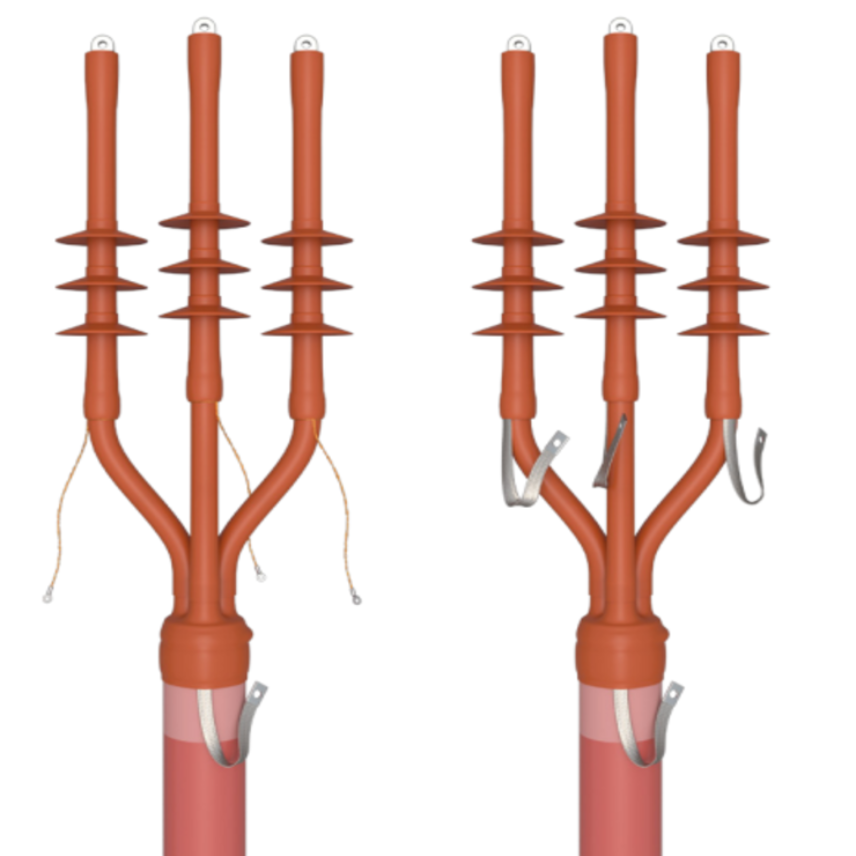

The ‘’MONOe3 W’’ outdoor terminations are designed for max system voltages of 42 kV. Easy, quick to install, reducing installation time and errors. The kit consists of a stress control mastic pad, a co extruded dual wall tube and red anti-tracking sealing mastic. Red anti-tracking break-out and red anti-tracking tubes “GT2” with adjustable length “D” are included in the kit. Anti-tracking rain sheds are supplied to withstand outdoor enviroments. The design accommodates various conductor lugs. MC types are supplied with “GPH” mechanical conductor lugs
