Heat shrink trifurications kit TK ARM
Heat shrink trifurications kit TK ARM
HEAT-SHRINK TRIFURCATIONS KITS FOR MV APPLICATIONS CABLES WITH ARMOR Up to 26/45 (52) kV
Read moreDescription
Description
APPLICATION

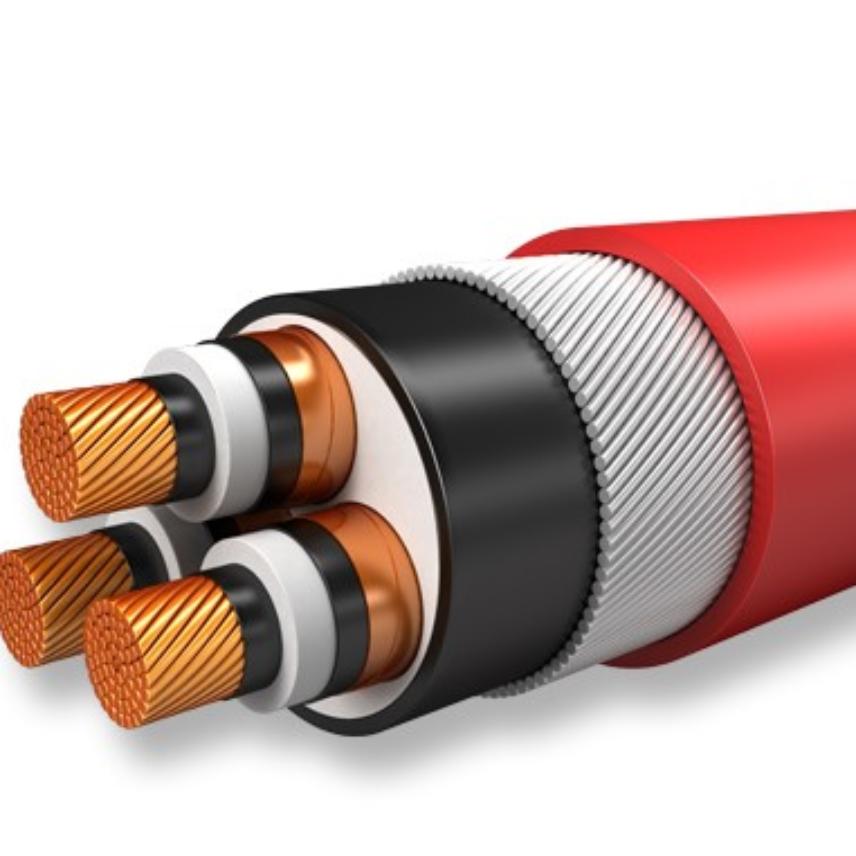

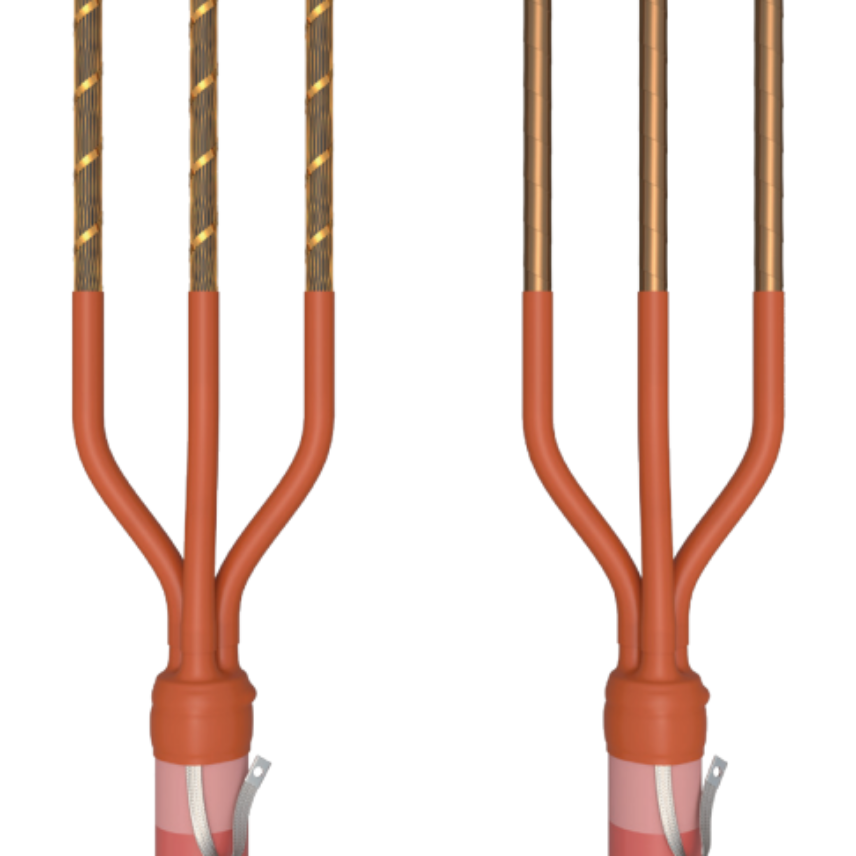

Designed to accommodate armored, three core cables to 3 single core terminations.
TECHNICAL FEATURES

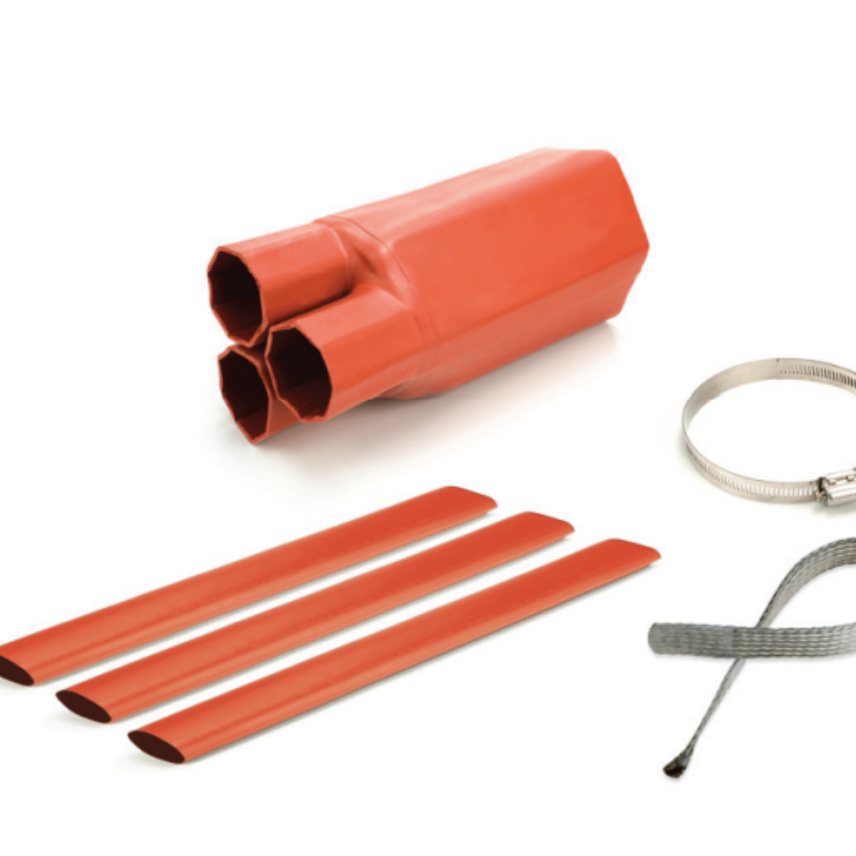

The TK A kit consists of an anti-tracking breakout for the cable crotch area, 1 pc of “GT2” anti-tracking tube to cover the cores, plus an earthing braid kit (consisting of a worm clip, tinned copper braid with water blocking and a connection point). A sealing mastic is provided to ensure water/moisture penetration. The red anti-tracking tubes “GT2” in the kit can be selected from 3 different spool lengths to be adjusted, by cutting in 3 parts, according to the required tail length (800,1200,1600 mm

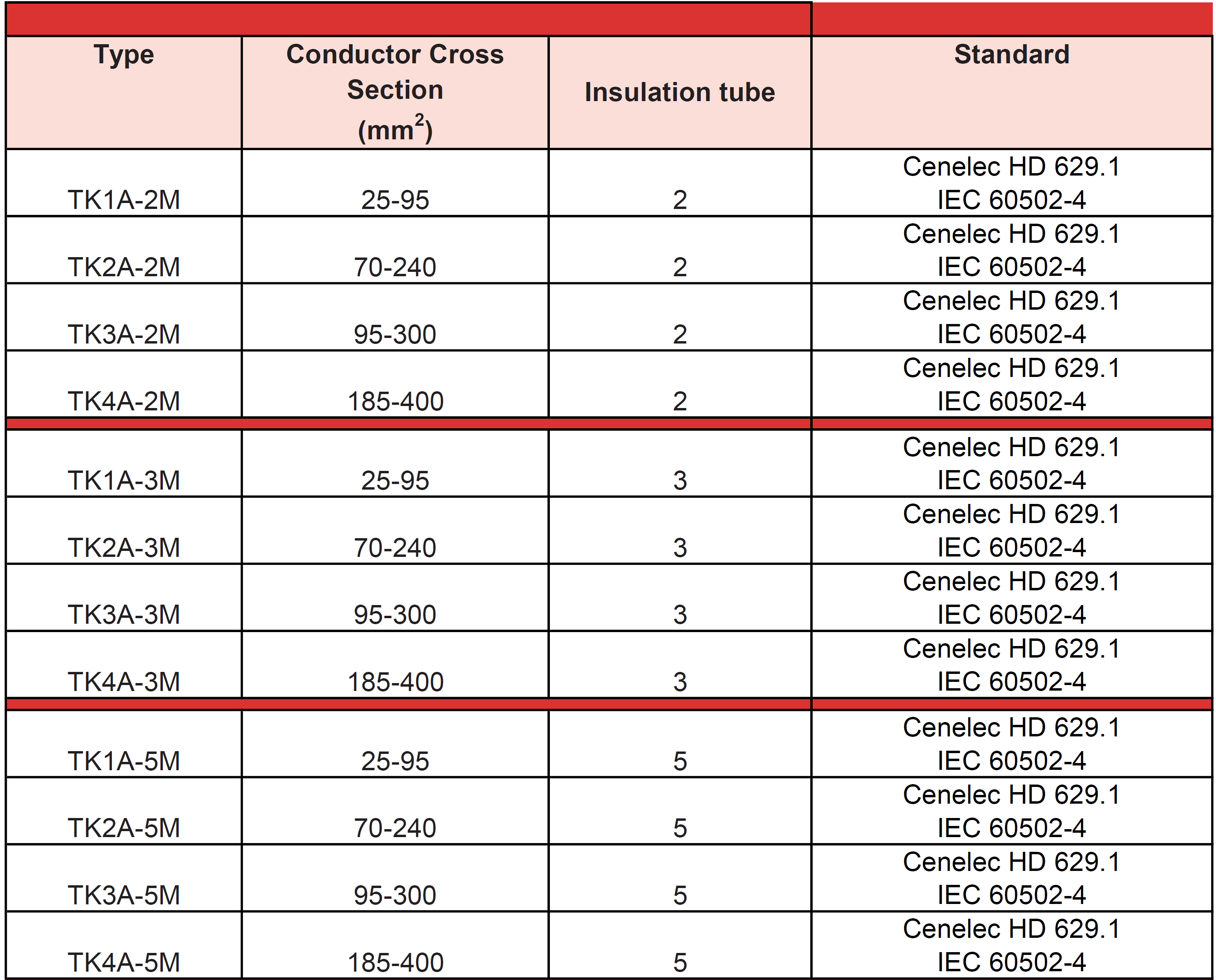

CHARACTERISTICS PRODUCT LEVEL
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Usage characteristics
Usage characteristics
