Heat shrink indoor termination TTCI3 W
Heat shrink indoor termination TTCI3 W
Heat-shrinkable mv indoor terminations for belted pilc cables W. armor
Up to 8,7/15 (17,5) kV
Description
Description
Standards
-
ProductIEC 60502-4
-
TestHD 629.2 S2
Application

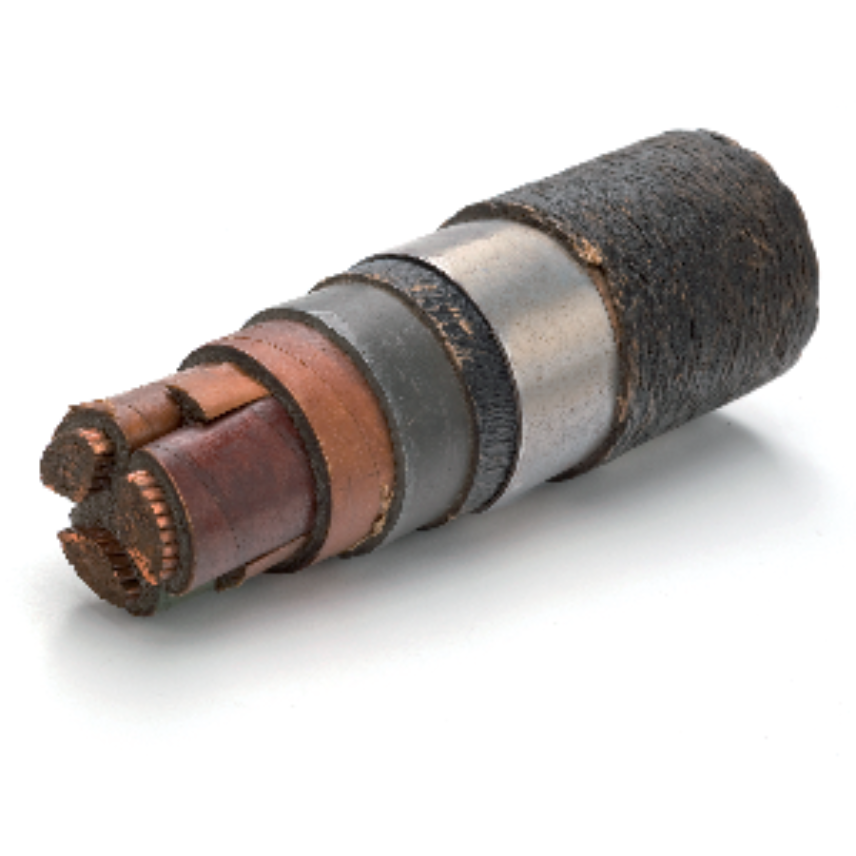

TTCI3 W heat-shrinkable indoor terminations for three core armored MIND/PILC belted paper cables up to 17kV.
Technical description
The cables cores are covered with oil resistant tubing.
The crotch area and gaps are filled and covered with stress grading mastic.
A 3 finger semi-conductive breakout then covers the crotch.
Stress grading mastic is applied over the breakout fingers, covered by stress control tubing.
GT2 anti-tracking tubes covers each core and the lugs.
Anti-tracking mastic is applied over the lugs, earthing and armour.
The environmental seal of the armour connection is made with GT3 adhesive lined, medium wall tubing.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
