Heat shrink outdoor termination TTGE1 Zi

Description

Description

Standards

  • Product
    IEC 60502-4
  • Test
    HD 629.1 S2

APPLICATION

“TTGE1 Zi” heat-shrink medium voltage outdoor terminations for single core polymeric insulated cables with either Cu wire screen or Cu tape screen with aluminium wire/ tape armor.

TECHNICAL FEATURES

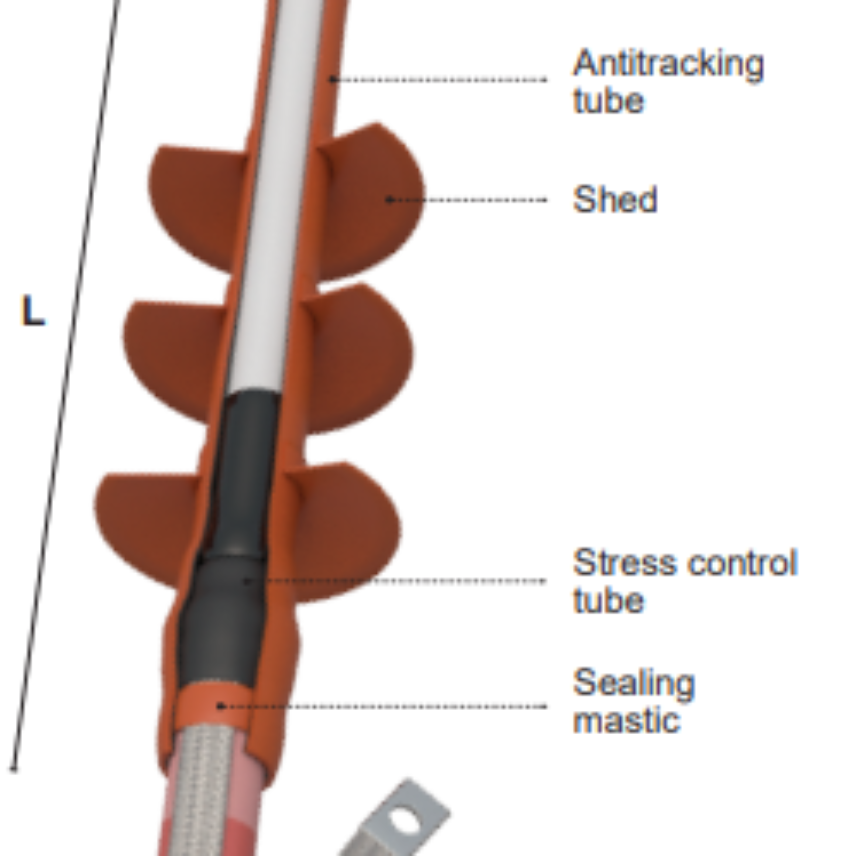

The “TTGE Zi” indoor terminations utilize stress control tubing with stress grading mastic to control the electric field. The cut of the semi-conductive screen on the termination is covered by stress control mastic strip, acting as both stress control and void filler. The stress control tubing completes the control of the electric field. The lug barrel is covered with anti-tracking mastic to create complete environmental seal. Anti-tracking mastic is also used to seal the earth/armor connection. “GT2” anti-tracking tube completes the termination and covers armor connection. Rain sheds are included in the kit. The design accommodates various conductor lugs. MC types are supplied with “GPH” mechanical conductor lugs.

CHARACTERISTICS PRODUCT LEVEL

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Technology
Heat shrink

Usage characteristics

Usage characteristics

Field of application
Outdoor
