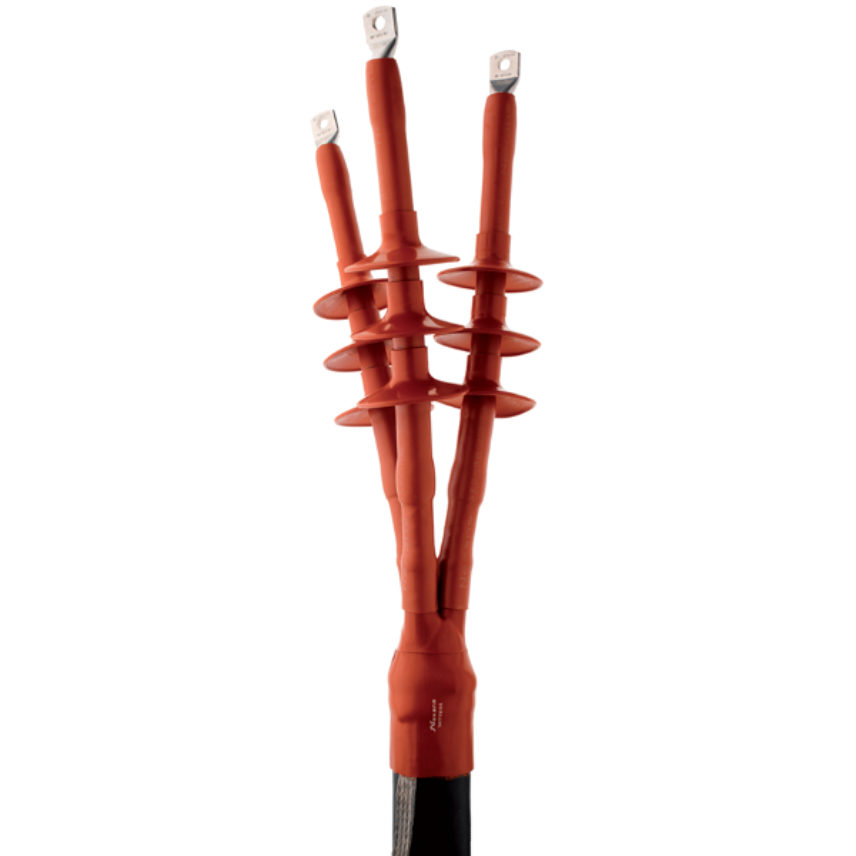

Heatshrinkable outdoor termination TTGEC3 W

Products

244TTGEC3.240W

Nexans ref. 244TTGEC3.240W

  • Field of application: Outdoor



244TTGEC3.400W

Nexans ref. 244TTGEC3.400W

  • Field of application: Outdoor



244TTGEC3.95W

Nexans ref. 244TTGEC3.95W

  • Field of application: Indoor



364TTGEC3.120W

Nexans ref. 364TTGEC3.120W

  • Field of application: Outdoor



364TTGEC3.300W

Nexans ref. 364TTGEC3.300W

  • Field of application: Outdoor



364TTGEC3.400W

Nexans ref. 364TTGEC3.400W

  • Field of application: Outdoor



Description

Description

Standards

  • Test
    HD 629.2 S2

Application

TTGEC3 w heat-shrinkable outdoor terminations are designed for mind individually lead sheathed cables with armour.

Technical description

The cables cores are prepared, the lead sheath is exposed and earthed.

The stress grading mastic covers the screen cut area onto the paper insulation. the lug is covered with silicone rubber tape.

Oil resistant tubing covers the cores.

Silicone rubber tape is used to block oil migration at the top and bottom of oil resistant tubing.

Stress control tubing is placed over oil barrier tube overlapping onto the lead sheath.

The crotch area and gaps are filled and covered with anti-tracking red mastic and is covered with a 3 finger anti-tracking breakout.

GT2 anti-tracking tubes protects the cores and additional gt2 tube is used for lug sealing.

Anti-tracking rain sheds are applied.

Armor and earth connection are included in the kit.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Technology
Heat shrink
