ARE4H5EX 18/30kV 3x1x120 SR/0,2
Nexans ref. 10531169
- Phase Conductor Cross Section: 120 mm²
- Phase Conductor Diameter: 13.1 mm
- Minimum insulation thickness: 6.4 mm
- Diameter over insulation: 27.7 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal overall diameter of each phase cable: 35.4 mm
- Nominal overall diameter: 76.2 mm
- Approximate weight: 3210 kg/km
- Max. DC resistance of the conductor at 20°C: 0.253 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.325 Ohm/km
- Perm. current rating buried 20°C - trefoil formation: 253 A
- Perm. current rating in air 30°C - trefoil formation: 329 A
- Permissible short circuit current conductor 1s: 11.3 kA
- Permissible short circuit current screen 0.5s: 2 kA
ARE4H5EX 18/30kV 3x1x150 SR/0,2
Nexans ref. 10512079
- Phase Conductor Cross Section: 150 mm²
- Phase Conductor Diameter: 14.3 mm
- Minimum insulation thickness: 6.2 mm
- Diameter over insulation: 28.5 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal overall diameter of each phase cable: 36.2 mm
- Nominal overall diameter: 78.0 mm
- Approximate weight: 3480 kg/km
- Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.265 Ohm/km
- Perm. current rating buried 20°C - trefoil formation: 282 A
- Perm. current rating in air 30°C - trefoil formation: 371 A
- Permissible short circuit current conductor 1s: 14.2 kA
- Permissible short circuit current screen 0.5s: 2.1 kA
ARE4H5EX 18/30kV 3x1x185 SR/0,2
Nexans ref. 10515585
- Phase Conductor Cross Section: 185 mm²
- Phase Conductor Diameter: 16 mm
- Minimum insulation thickness: 6.0 mm
- Diameter over insulation: 29.8 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal overall diameter of each phase cable: 37.6 mm
- Nominal overall diameter: 81.0 mm
- Approximate weight: 3850 kg/km
- Max. DC resistance of the conductor at 20°C: 0.164 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.211 Ohm/km
- Perm. current rating buried 20°C - trefoil formation: 319 A
- Perm. current rating in air 30°C - trefoil formation: 426 A
- Permissible short circuit current conductor 1s: 17.5 kA
- Permissible short circuit current screen 0.5s: 2.1 kA
ARE4H5EX 18/30kV 3x1x240 SR/0,2
Nexans ref. 10506045
- Phase Conductor Cross Section: 240 mm²
- Phase Conductor Diameter: 18.5 mm
- Minimum insulation thickness: 5.8 mm
- Diameter over insulation: 31.9 mm
- Nominal outer sheath thickness: 2.2 mm
- Nominal overall diameter of each phase cable: 40 mm
- Nominal overall diameter: 86.2 mm
- Approximate weight: 4520 kg/km
- Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.161 Ohm/km
- Perm. current rating buried 20°C - trefoil formation: 370 A
- Perm. current rating in air 30°C - trefoil formation: 505 A
- Permissible short circuit current conductor 1s: 22.7 kA
- Permissible short circuit current screen 0.5s: 2.2 kA
ARE4H5EX 18/30kV 3x1x300 SR/0,2
Nexans ref. 10548604
- Phase Conductor Cross Section: 300 mm²
- Phase Conductor Diameter: 20.7 mm
- Minimum insulation thickness: 5.9 mm
- Diameter over insulation: 34.3 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal overall diameter of each phase cable: 42.6 mm
- Nominal overall diameter: 91.9 mm
- Approximate weight: 5220 kg/km
- Max. DC resistance of the conductor at 20°C: 0.1 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.129 Ohm/km
- Perm. current rating buried 20°C - trefoil formation: 418 A
- Perm. current rating in air 30°C - trefoil formation: 580 A
- Permissible short circuit current conductor 1s: 28.3 kA
- Permissible short circuit current screen 0.5s: 2.3 kA
ARE4H5EX 18/30kV 3x1x400 SR/0,2
Nexans ref. 10568546
- Phase Conductor Cross Section: 400 mm²
- Phase Conductor Diameter: 23.5 mm
- Minimum insulation thickness: 6.0 mm
- Diameter over insulation: 37.3 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal overall diameter of each phase cable: 46 mm
- Nominal overall diameter: 99.1 mm
- Approximate weight: 6220 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0778 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.101 Ohm/km
- Perm. current rating buried 20°C - trefoil formation: 477 A
- Perm. current rating in air 30°C - trefoil formation: 678 A
- Permissible short circuit current conductor 1s: 37.8 kA
- Permissible short circuit current screen 0.5s: 2.5 kA
ARE4H5EX 18/30kV 3x1x70 SR/0,2
Nexans ref. 10513353
- Phase Conductor Cross Section: 70 mm²
- Phase Conductor Diameter: 9.8 mm
- Minimum insulation thickness: 7.1 mm
- Diameter over insulation: 25.8 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal overall diameter of each phase cable: 33.2 mm
- Nominal overall diameter: 71.5 mm
- Approximate weight: 2650 kg/km
- Max. DC resistance of the conductor at 20°C: 0.443 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.568 Ohm/km
- Perm. current rating buried 20°C - trefoil formation: 187 A
- Perm. current rating in air 30°C - trefoil formation: 235 A
- Permissible short circuit current conductor 1s: 6.6 kA
- Permissible short circuit current screen 0.5s: 1.9 kA
ARE4H5EX 18/30kV 3x1x95 SR/0,2
Nexans ref. 10515584
- Phase Conductor Cross Section: 95 mm²
- Phase Conductor Diameter: 11.5 mm
- Minimum insulation thickness: 6.6 mm
- Diameter over insulation: 26.5 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal overall diameter of each phase cable: 33.9 mm
- Nominal overall diameter: 73.1 mm
- Approximate weight: 2880 kg/km
- Max. DC resistance of the conductor at 20°C: 0.32 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.411 Ohm/km
- Perm. current rating buried 20°C - trefoil formation: 222 A
- Perm. current rating in air 30°C - trefoil formation: 284 A
- Permissible short circuit current conductor 1s: 9 kA
- Permissible short circuit current screen 0.5s: 1.9 kA
Description
Description
Standards
-
ProductHD 620; IEC 60502-2
Description

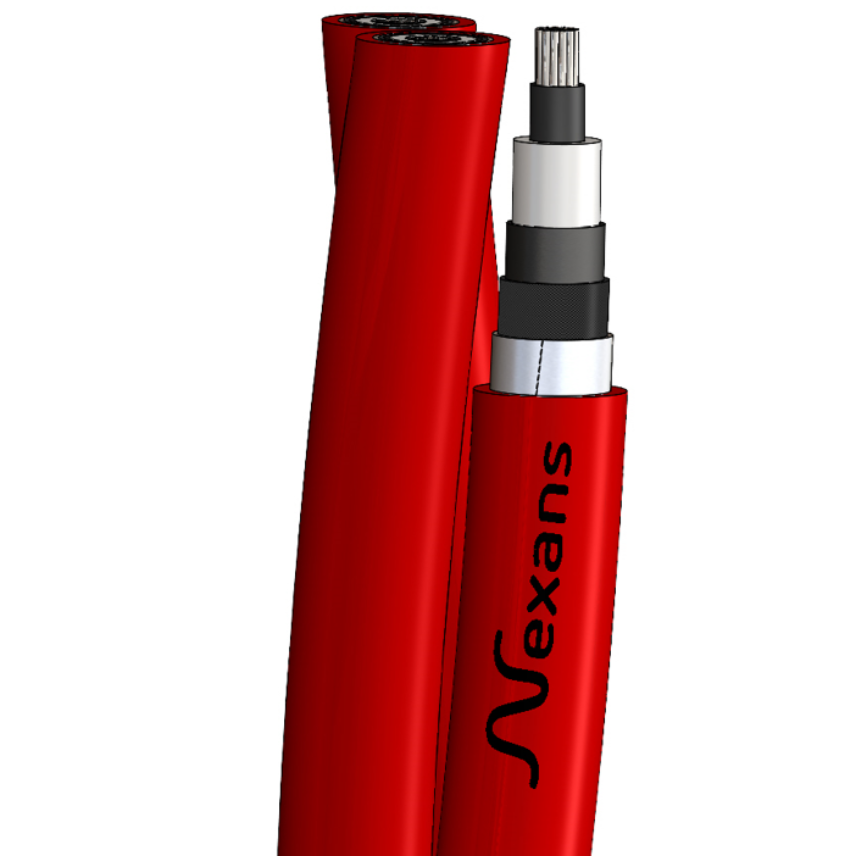

Helically bundled tripolar cables with aluminium conductor, reduced thickness XLPE insulation, aluminium tape screen, PE outer sheath.
Application:
Suitable for fixed installation indoor or outdoor, laying in air or directly or indirectly buried.
Construction
- Conductor: stranded, compacted, round aluminium – Cl. 2 (IEC 60228).
- Conductor screen: extruded semiconducting compound.
- Insulation: extruded polyethylene (XLPE) compound.
- Insulation screen: extruded semiconducting compound – fully bonded.
- Longitudinal watertightness: semiconducting water blocking tape.
- Screen and radial watertightness: aluminium tape longitudinally applied (nominal thickness: 0,2 mm).
- Outer sheath: extruded polyethylene (PE) compound. Colour: red.
Functional characteristics
- Rated voltages U0/U: 18/30 kV
- Max. operating temperature of conductor: 90°C
- Max. short circuit temperature of conductor: 250°C (max 5s)
- Max. short circuit temperature of screen: 150°C
- Min. installation temperature: -25°C
- Max. tensile strength on the conductor during installation: 50 N/mm2
- Min. bending radius during installation: 21 Dphase
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Aluminum
Conductor shape
Round, stranded and compacted
Conductor flexibility
Class 2 acc. to IEC 60228
Material of the inner semi-conductor
Extruded semiconducting compound
Insulation
Extruded XLPE compound
Material of the external semi-conductor
Extruded semiconducting compound - fully bonded
Material used for longitudinal water tightness
Semiconducting swellable tape
Screen
Aluminium tape
Outer sheath
Extruded PE compound
Sheath colour
Red
Lay Up
Twisted single cores
Dimensional characteristics
Dimensional characteristics
Number of phases
3
Screen thickness
200 µm
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
18 / 30 (36) kV
Thermal soil resistivity dry zone
1.5 °K.m/W
Grounding type
Solid bonding
Usage characteristics
Usage characteristics
Laying depth, center of system
800 mm
