ARE4H5EXY 12/20kV / Fca
ARE4H5EXY 12/20kV 3x150+50Y IT
Nexans ref. 10546276
- Phase Conductor Cross Section: 150 mm²
- Phase Conductor Diameter: 14.3 mm
- Diameter over insulation: 24.7 mm
- Average sheath thickness: 2.0 mm
- Nominal overall diameter of each phase cable: 32.7 mm
- Nominal overall diameter: 74.8 mm
- Approximate weight: 3400 kg/km
- Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.265 Ohm/km
- Permissible current rating in air 40°C - trefoil formation: 340 A
- Permissible short circuit current conductor 1s: 14.2 kA
- Permissible short circuit current screen 0.5s: 2.6 kA
ARE4H5EXY 12/20kV 3x35+50Y IT
Nexans ref. 10546349
- Phase Conductor Cross Section: 35 mm²
- Phase Conductor Diameter: 7 mm
- Diameter over insulation: 17.4 mm
- Average sheath thickness: 1.8 mm
- Nominal overall diameter of each phase cable: 24.6 mm
- Nominal overall diameter: 58.6 mm
- Approximate weight: 1870 kg/km
- Max. DC resistance of the conductor at 20°C: 0.868 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 1.113 Ohm/km
- Permissible current rating in air 40°C - trefoil formation: 140 A
- Permissible short circuit current conductor 1s: 3.3 kA
- Permissible short circuit current screen 0.5s: 2 kA
ARE4H5EXY 12/20kV 3x50+50Y IT
Nexans ref. 10546360
- Phase Conductor Cross Section: 50 mm²
- Phase Conductor Diameter: 8.2 mm
- Diameter over insulation: 18.6 mm
- Average sheath thickness: 1.9 mm
- Nominal overall diameter of each phase cable: 26 mm
- Nominal overall diameter: 61.5 mm
- Approximate weight: 2090 kg/km
- Max. DC resistance of the conductor at 20°C: 0.641 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.822 Ohm/km
- Permissible current rating in air 40°C - trefoil formation: 170 A
- Permissible short circuit current conductor 1s: 4.7 kA
- Permissible short circuit current screen 0.5s: 2.1 kA
ARE4H5EXY 12/20kV 3x95+50Y IT
Nexans ref. 10546361
- Phase Conductor Cross Section: 95 mm²
- Phase Conductor Diameter: 11.5 mm
- Diameter over insulation: 21.9 mm
- Average sheath thickness: 1.9 mm
- Nominal overall diameter of each phase cable: 29.5 mm
- Nominal overall diameter: 68.5 mm
- Approximate weight: 2730 kg/km
- Max. DC resistance of the conductor at 20°C: 0.32 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.411 Ohm/km
- Permissible current rating in air 40°C - trefoil formation: 255 A
- Permissible short circuit current conductor 1s: 9 kA
- Permissible short circuit current screen 0.5s: 2.4 kA
Description
Description
Standards
-
ProductGSCC008
Description

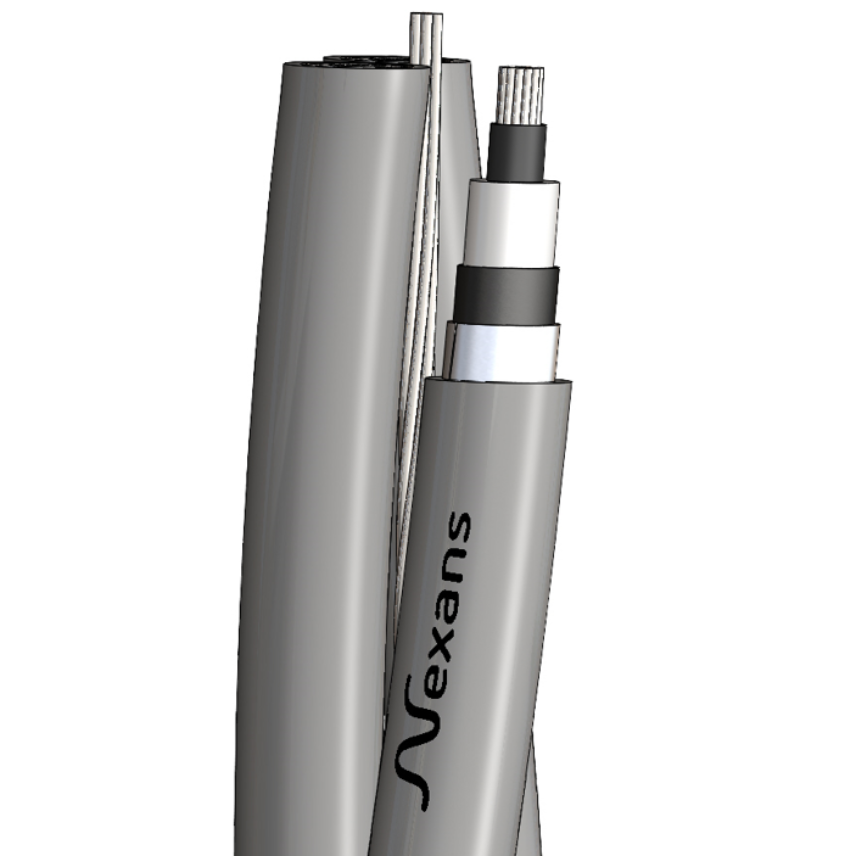

Helically bundled tripolar cables, with messenger. Phases with aluminium conductor, XLPE insulation, aluminium tape screen, PE outer sheath. Messenger with aluminium clad steel conductor.
Cables compliant with the requirements of the Construction Products Regulation “CPR (EU) n° 305/2011”.
Fire performance class: Fca
Application:
Suitable for fixed installation laying in air.
Construction
- Conductor: stranded, compacted, round aluminium – Cl. 2 (IEC 60228).
- Conductor screen: extruded semiconducting compound.
- Insulation: extruded polyethylene (XLPE) compound.
- Insulation screen: extruded semiconducting compound – easy strippable.
- Screen and radial watertightness: aluminium tape longitudinally applied (nominal thickness: 0,3 mm).
- Outer sheath: extruded polyethylene (PE) compound. Colour: grey.
- Messenger: stranded aluminium clad steel wires.
Functional characteristics
- Rated voltages U0/U: 12/20 kV
- Max. operating temperature of conductor: 90°C
- Max. short circuit temperature of conductor: 250°C (max 5s)
- Max. short circuit temperature of screen: 150°C
- Min. installation temperature: -25°C
- Max. tensile strength on the conductor during installation: 50 N/mm2
- Min. bending radius during installation: 21 Dphase
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Aluminum
Conductor shape
Round, stranded and compacted
Conductor flexibility
Class 2 acc. to IEC 60228
Material of the inner semi-conductor
Extruded semiconducting compound
Insulation
Extruded XLPE compound
Material of the external semi-conductor
Extruded semiconducting compound - easy strippable
Screen
Aluminium tape
Outer sheath
Extruded PE compound
Sheath colour
Grey
Messenger
Aluminium clad steel
Messenger shape
Round, stranded
Messenger flexibility
According to GSCC008
Lay Up
Twisted single cores
Dimensional characteristics
Dimensional characteristics
Number of phases
3
Messenger cross-section
49.48 mm²
Messenger conductor diameter
9 mm
Nominal insulation thickness
4.9 mm
Minimum insulation thickness
4.31 mm
Screen thickness
300 µm
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
12 / 20 (24) kV
Grounding type
Solid bonding
